商品の詳細:
|

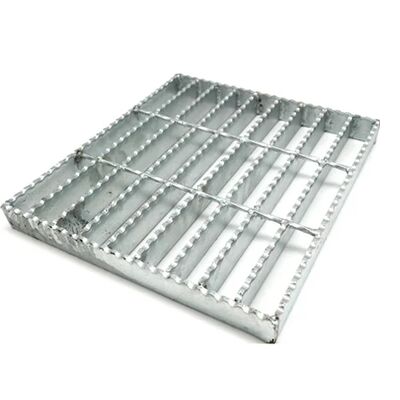

| ハイライト: | Plain Steel Bar Grating,Mild Steel Cross Bar Grating,Hot DIP Galvanized Floor Grating |
||
|---|---|---|---|
| No. | Item | Detailed Description |
|---|---|---|
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' |
| 2 | Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 |
| 3 | Twisted Cross Bar Pitch | 38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' |
| 4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel |
| 5 | Surface Treatment | Black, self color, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain/Smooth, Serrated/teeth, I bar, serrated I bar |
| 7 | Grating Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |
コンタクトパーソン: Mrs. Zhang
電話番号: +86 15824687445
ファックス: 86-372-5055135
