商品の詳細:
|
| ハイライト: | Hot Dip Galvanized Steel Grating,Customizable Size Drain Cover,Anti-Slip Serrated Trench Cover |
||
|---|---|---|---|

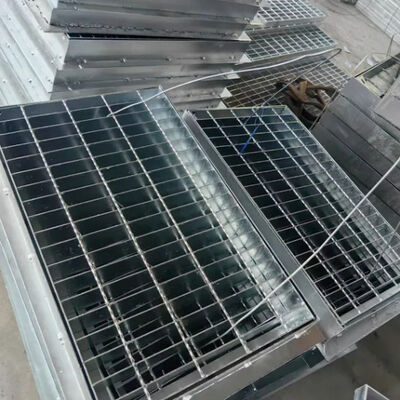

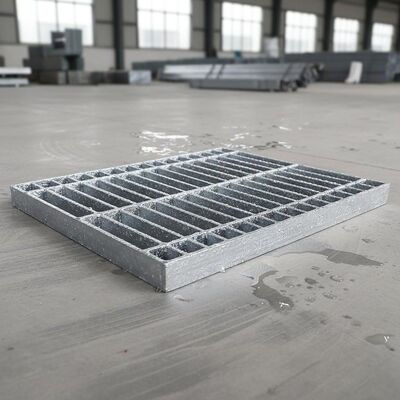

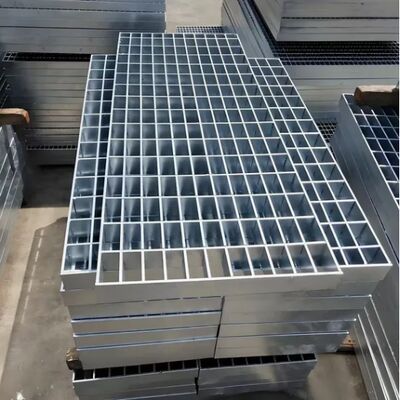

| Product Name | Customized Anti-slip Serrated Steel Grating |
|---|---|
| Material Options | Mild Steel (Low Carbon Steel), S235, S275JR, A36, or Stainless Steel SS304, SS316 |
| Surface Treatment | Hot dipped galvanized, polished or untreated |
| Grate Size | Customized to customer requirements |
| Bearing Bar Width x Thickness | 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5,...75x10mm |
|---|---|

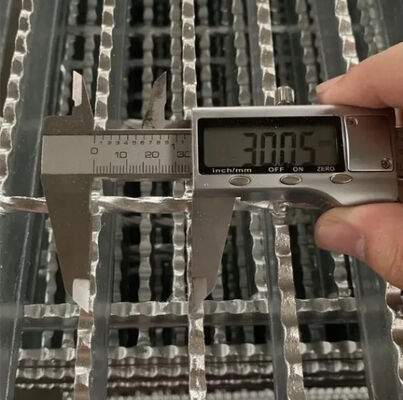

| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm US standard: 1"x3/16", 1¼"x3/16", 1½"x3/16", 1"x¼", 1¼"×¼", 1½"x¼" |
| Cross Bar Pitch | 38, 50, 76, 100, 101.6mm or custom |
| Pitch of Bearing Bar | Cross-bar Pitch | Bearing Bar Specifications (width x thickness) |
|---|---|---|
| 30 | 100 | G203/30/100, G253/30/100, G323/30/100, G403/30/100, G205/30/100, G255/30/100 |
| 50 | G203/30/50, G253/30/50, G323/30/50, G403/30/50, G205/30/50, G255/30/50 | |
| 40 | 100 | G203/40/100, G253/40/100, G323/40/100, G403/40/100, G205/40/100, G255/40/100 |
| 50 | G203/40/50, G253/40/50, G323/40/50, G403/40/50, G205/40/50, G255/40/50 | |
| 60 | 50 | G253/60/50, G403/60/50, G205/60/50, G255/60/50 |
| Pitch of Bearing Bar | Cross-bar Pitch | Bearing Bar Specifications (width x thickness) |
|---|---|---|
| 30 | 100 | G325/30/100, G405/30/100, G455/30/100, G505/30/100, G555/30/100, G605/30/100 |
| 50 | G325/30/50, G405/30/50, G455/30/50, G505/30/50, G555/30/50, G605/30/50 | |
| 40 | 100 | G325/40/100, G405/40/100, G455/40/100, G505/40/100, G555/40/100, G605/40/100 |
| 50 | G325/40/50, G405/40/50, G455/40/50, G505/40/50, G555/40/50, G605/40/50 | |
| 60 | 50 | G325/60/50, G405/60/50, G455/60/50, G505/60/50, G555/60/50, G605/60/50 |
