Heavy Duty Hot DIP Galvanized Steel Bar Grating

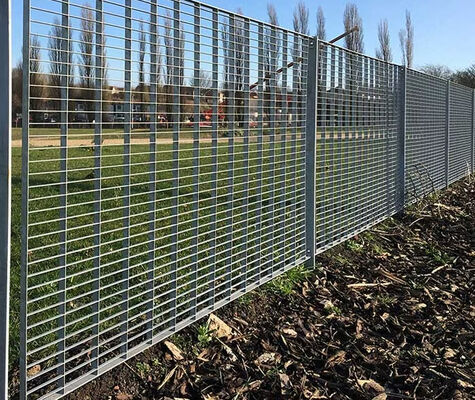

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed to hold heavy loads with minimal weight. The bearing bars run in one direction and are spaced by rigid attachment to crossbars running perpendicular to them. This versatile material is widely used as floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.
Product Specifications
Material Standards
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304, Mild steel & Low carbon steel, etc.
Bearing Bar Dimensions
- 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm, etc.
- I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3, etc.
- US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8", etc.
Bearing Bar Pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc.
Surface Treatment
Untreated (black), hot-dipped galvanized, powder coated, electroplate, painting, or as per customers' requirements.
Grating Style
Plain / Smooth, Serrated / teeth, I bar, serrated I bar

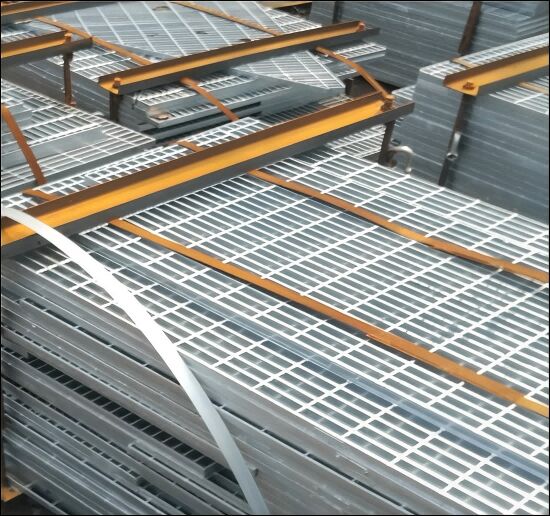

Packing Options
- LCL (less than one container load): packed with plastic film then on the pallets
- FCL (full container load): nude packing
- Other special package: according to customers' requirements
Customization of your drawing or your unique sizes are available.
Standard Load Tables
Load Table 1
| Bearing Bar Pitch |
Cross Bar Pitch |
20×3 |
25×3 |
32×3 |
40×3 |
20×5 |
25×5 |
| 30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
| 50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
| 40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
| 50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
| 60 |
50 |
- |
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
Load Table 2
| Bearing Bar Pitch |
Cross Bar Pitch |
32×5 |
40×5 |
45×5 |
50×5 |
55×5 |
60×5 |
| 30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
| 50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
| 40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
| 50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
| 60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |
