Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring

Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring
Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring

大画像 :  Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring

商品の詳細:
ブランド名: Gnee
お支払配送条件:
最小注文数量: 2個
パッケージの詳細: 金属ベルトで固定 パレットで梱包、外側を防水フィルムで包み コンテナにフィニアル
受渡し時間: 支払い後20日以内に発送
供給の能力: 300000 平方メートル/平方メートル/月
連絡先

Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring

説明
ハイライト:

Hot Dip Galvanized Steel Bar Grating

,

Serrated Surface Metal Grating

,

25x5 Bearing Bar Floor Grating

Heavy Duty Durable Metal Steel Bar Grating Floor
Steel bar grating is engineered for exceptional strength and durability, manufactured from carbon steel, aluminum, or stainless steel. Available in multiple production types including welded, press-locked, swage-locked, and riveted grating, with both smooth and serrated surface options. This versatile product offers a comprehensive range of styles and sizes suitable for various industrial applications.
Product Specifications
Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc;
US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc.
Bearing Bar Pitch 12.5, 15, 20, 25, 30, 32, 35, 38, 40, 60, 80mm etc;
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc;
Note: 19-W-4 is most popular (19/16 inch x 4 inch opening = 30x100mm opening)
Twisted Cross Bar Pitch 50, 60, 76, 100, 120mm etc;
US standard: 2' & 4' etc.
Surface Treatment Black, self color, hot dip galvanized, painted, spray coating
Grating Style Plain / Smooth, Serrated / teeth, I bar, serrated I bar
Industrial Applications
  • Water Treatment: Repair walkways, trench cover boards, large containers, cleaning devices, blocking grates, running water tanks, biochemical water treatment pool pendants, ventilation windows, stairs, cooling tower operation table paving surfaces
  • Chemical Plants: Stairway boards, operating platforms, guardrails, double floors, trench cover boards, filter grates
  • Industrial Facilities: Offshore oil platforms and heavy industrial settings
  • Textile Mills: Replacement for metal grilles, wooden platforms, and cement ground covers near dye tanks, floors, and valves
  • Power Plants: Chemical water workshop trench cover plates, waste pools, and related infrastructure
  • Marine & Food Processing: Slip-resistant surfaces in harsh environments, ship decks, and processing areas
  • Transportation: Platforms, ship decks, walkways, and stair systems
  • Beverage Industry: Staircase floor boards as cost-effective alternatives to stainless steel for loaded floors

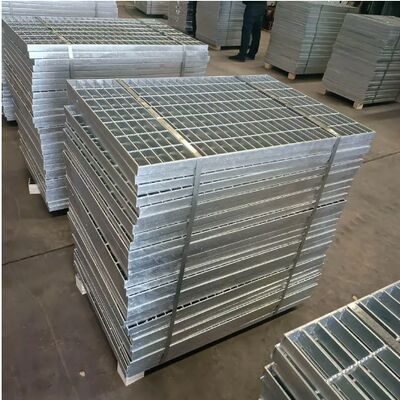

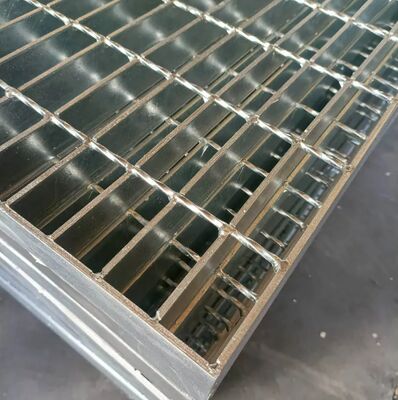

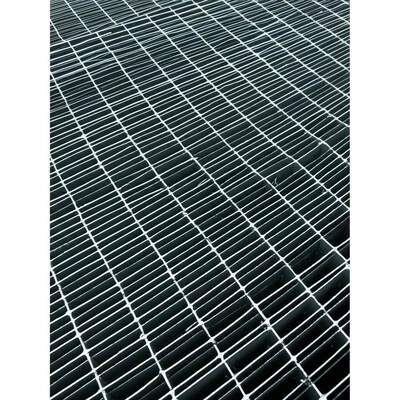

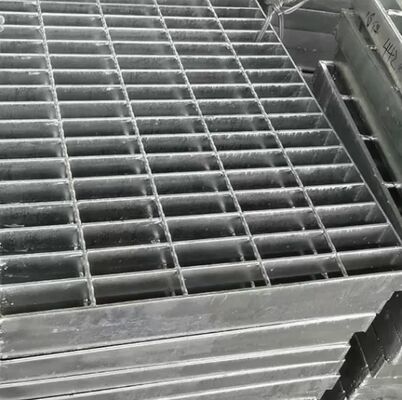

Product Gallery
Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring 0 Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring 1 Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring 2
