Hot-Dip Galvanized Steel Grating Made from Q235/Q345 Carbon Steel with 5 Years Warranty for Heavy Duty Drainage

Hot-Dip Galvanized Steel Grating Made from Q235/Q345 Carbon Steel with 5 Years Warranty for Heavy Duty Drainage
Hot-Dip Galvanized Steel Grating Made from Q235/Q345 Carbon Steel with 5 Years Warranty for Heavy Duty Drainage Hot-Dip Galvanized Steel Grating Made from Q235/Q345 Carbon Steel with 5 Years Warranty for Heavy Duty Drainage Hot-Dip Galvanized Steel Grating Made from Q235/Q345 Carbon Steel with 5 Years Warranty for Heavy Duty Drainage Hot-Dip Galvanized Steel Grating Made from Q235/Q345 Carbon Steel with 5 Years Warranty for Heavy Duty Drainage

大画像 :  Hot-Dip Galvanized Steel Grating Made from Q235/Q345 Carbon Steel with 5 Years Warranty for Heavy Duty Drainage

商品の詳細:
ブランド名: Gnee
お支払配送条件:
最小注文数量: 2個
パッケージの詳細: 金属ベルトで固定 パレットで梱包、外側を防水フィルムで包み コンテナにフィニアル
受渡し時間: 支払い後20日以内に発送
供給の能力: 300000 平方メートル/平方メートル/月
連絡先

Hot-Dip Galvanized Steel Grating Made from Q235/Q345 Carbon Steel with 5 Years Warranty for Heavy Duty Drainage

説明
ハイライト:

Hot-Dip Galvanized Steel Grating

,

Q235/Q345 Carbon Steel Grating

,

5 Years Warranty Steel Grating

Reliable Heavy Duty Steel Bar Grating for Eco-Friendly Drainage Solutions
What is Steel Grating?
Steel grating is manufactured by arranging bearing bars and cross bars in a flat-steel weft pattern, then welding them together using high-pressure resistance welding. The final product is processed through cutting, incision, opening, and overlock operations to meet specific customer requirements.
Product Advantages
  • High strength construction with lightweight structure
  • Exceptional load-bearing capacity
  • Convenient installation and handling
  • Excellent corrosion resistance through hot-dip galvanizing
  • Superior cost-performance ratio
Applications
Hot-dip galvanized steel grating is widely used in construction projects for paved ditch roads on both new and existing roadbeds. The specialized hot-dip galvanizing treatment provides stable chemical and physical properties, making it resistant to corrosion and oxidation from air and microorganisms while significantly enhancing trench load capacity.
Product Specifications
Product Name Steel Grating
Specification 200×500×30, 200×1000×20, 200×1000×30, 250×500×20, 250×500×30,
250×1000×20, 250×1000×30, 300×500×20, 300×500×30, 300×1000×20,
300×1000×30, 350×500×30, 350×1000×30, 400×600×30, 400×1000×30,
400×1000×60, Customized According to Your Requirements
Product Material Q235/Q345 Carbon Steel / Stainless Steel
Grating Style Plain/Smooth, Serrated/Teeth, I Bar, Serrated I Bar
Surface Treatment Hot-dipped galvanized, Powder coated, Electroplate, Untreated (black), Painting or as per customers' requirement
Sheet Thickness 3mm, 4mm, 5mm, 6mm, 8mm, 9mm, 10mm
Standard China: YB/T 4001.1-2007
USA: ANSI/NAAMM (MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Application Platform, Walkway, Trestle, Ditch Cover, Manhole Cover, Ladder, Fence, etc.
Warranty 5 Years

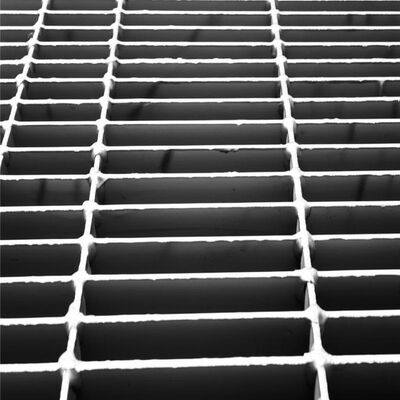

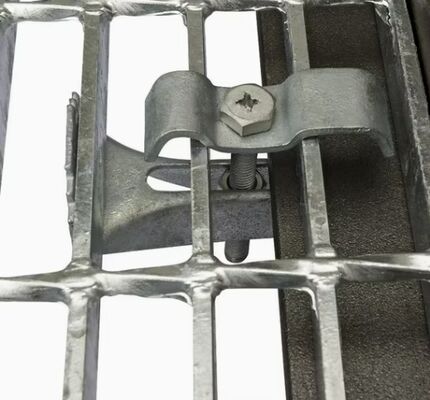

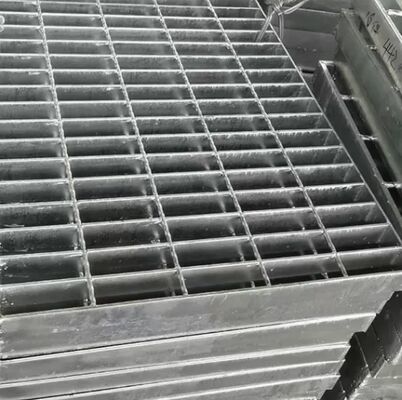

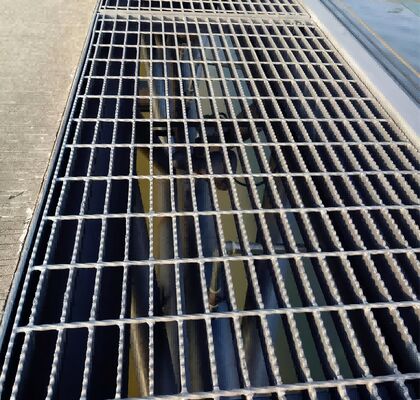

Product Images
Hot-Dip Galvanized Steel Grating Made from Q235/Q345 Carbon Steel with 5 Years Warranty for Heavy Duty Drainage 0 Hot-Dip Galvanized Steel Grating Made from Q235/Q345 Carbon Steel with 5 Years Warranty for Heavy Duty Drainage 1 Hot-Dip Galvanized Steel Grating Made from Q235/Q345 Carbon Steel with 5 Years Warranty for Heavy Duty Drainage 2
