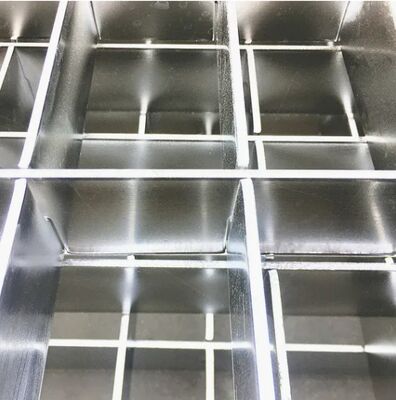

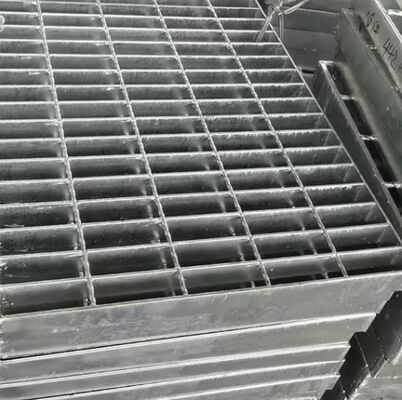

Hot-DIP Galvanized Steel Bar Grating with High Percentage of Open Area and High Strength-to-Weight Ratio for Platforms and Walkways

Hot-DIP Galvanized Steel Bar Grating with High Percentage of Open Area and High Strength-to-Weight Ratio for Platforms and Walkways
Hot-DIP Galvanized Steel Bar Grating with High Percentage of Open Area and High Strength-to-Weight Ratio for Platforms and Walkways Hot-DIP Galvanized Steel Bar Grating with High Percentage of Open Area and High Strength-to-Weight Ratio for Platforms and Walkways Hot-DIP Galvanized Steel Bar Grating with High Percentage of Open Area and High Strength-to-Weight Ratio for Platforms and Walkways

大画像 :  Hot-DIP Galvanized Steel Bar Grating with High Percentage of Open Area and High Strength-to-Weight Ratio for Platforms and Walkways

商品の詳細:
ブランド名: Gnee
お支払配送条件:
最小注文数量: 2個
パッケージの詳細: 金属ベルトで固定 パレットで梱包、外側を防水フィルムで包み コンテナにフィニアル
受渡し時間: 支払い後20日以内に発送
供給の能力: 300000 平方メートル/平方メートル/月
連絡先

Hot-DIP Galvanized Steel Bar Grating with High Percentage of Open Area and High Strength-to-Weight Ratio for Platforms and Walkways

説明
ハイライト:

Hot-DIP Galvanized Steel Bar Grating

,

High Percentage of Open Area Metal Grating

,

High Strength-to-Weight Ratio Galvanized Steel Grating

Hot-DIP Galvanized Compound Steel Bar Grating

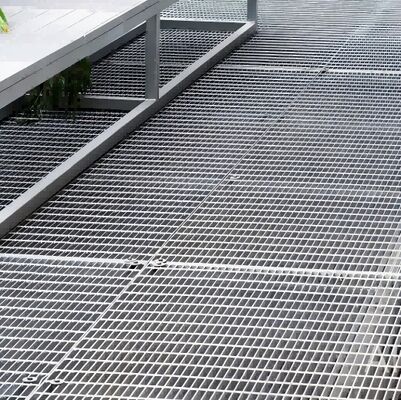

Ideal for platforms, walkways, trench covers, and manhole covers in industrial and commercial applications.
Product Advantages
  • Appropriate Materials: Available in mild carbon steel and stainless steel for safe, durable performance across various environments.
  • High Percentage of Open Area: 50-80% open area allows unhindered passage of light, air, and liquids, reducing lighting, ventilation, and fire suppression costs.
  • High Strength-to-Weight Ratio: Engineered for maximum efficiency, supporting loads from light pedestrian traffic to heavy vehicle and aircraft loads.
  • Product Flexibility: Powerful fabrication capabilities allow customization to suit exact application configurations.
  • Economy: Shop-fabricated and finished to meet project specifics, ready for immediate service upon installation.
  • Maintenance-Free: Excellent drainage and debris passage capabilities create virtually maintenance-free flooring solutions.
Common Steel Grating Specifications
Bearing Bar Size: 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5
Bearing Bar Pitch Cross Bar Pitch Product Codes
30 100 G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100
50 G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50
40 100 G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100
50 G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50
60 50 G203/60/50 | G253/60/50 | G323/60/50 | G403/60/50 | G205/60/50 | G255/60/50
Bearing Bar Size: 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5
Bearing Bar Pitch Cross Bar Pitch Product Codes
30 100 G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100
50 G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50
40 100 G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100
50 G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50
60 50 G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50
Hot-DIP Galvanized Steel Bar Grating with High Percentage of Open Area and High Strength-to-Weight Ratio for Platforms and Walkways 0 Hot-DIP Galvanized Steel Bar Grating with High Percentage of Open Area and High Strength-to-Weight Ratio for Platforms and Walkways 1
