Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly

Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly
Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly

大画像 :  Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly

商品の詳細:
ブランド名: Gnee
お支払配送条件:
最小注文数量: 2pcs
パッケージの詳細: 金属ベルトで固定 パレットで梱包、外側を防水フィルムで包み コンテナにフィニアル
受渡し時間: 支払の後の20日に出荷される
供給の能力: 月額300000平方メートル/平方メートル
連絡先

Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly

説明
ハイライト:

Trench Drain Channel Steel Grating

,

Heavy Load Bearing Metal Grating

,

Open Grid Assembly Galvanized Steel Grating

China Suppliers Trench Drain Channel and Grate Hot-DIP Galvanized Steel Grating

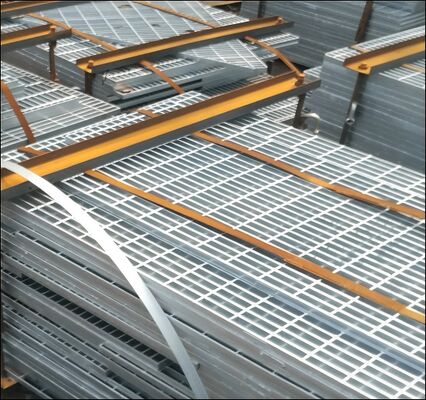

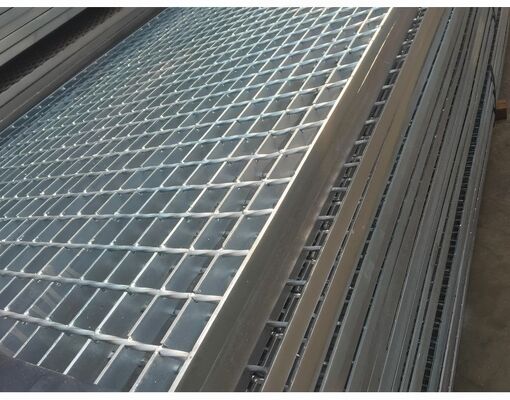

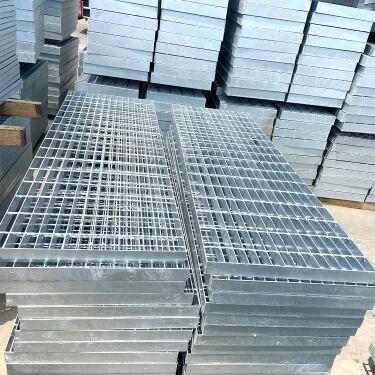

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is intended to hold heavy loads with minimal weight. Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.
Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly 0
Common Steel Grating Specification
Bearing bar pitch Cross bar pitch Bearing bar size (depth*thickness)
20×3 25×3
25×3 40×3 20×5 | 20×5
30 100 G203/30/100 | G253/30/100
G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100
50 G203/30/50 | G253/30/50
G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50
40 100 G203/40/100 | G253/40/100
G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100
50 G203/40/50 | G253/40/50
G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50
60 50 G203/60/50
G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50
32×5 40×5
45×5 50×5 55×5 | 60×5
30 100 G325/30/100 | G405/30/100
G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100
50 G325/30/50 | G405/30/50
G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50
40 100 G325/40/100 | G405/40/100
G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100
50 G325/40/50 | G405/40/50
G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50
60 50 G325/60/50 | G405/60/50
G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50
Raw Material
  • Galvanized steel grating: A36 is the common grade. After welding is completed, surface treatment will be carried out: mild steel grating will be hot-dip galvanized or painted to make it look beautiful or corrosion-resistant.
  • Stainless steel grating: Common grade is SS201, 304, 316, 316L. Stainless steel grating itself has a strong corrosion resistance, suitable for food processing and chemical fields.
  • I Bar Steel Grating: With its unique I-section design, it exhibits excellent bearing capacity and stability, and is suitable for heavy-loaded industrial platforms, bridges and other places, and has both ventilation and light transmission properties.
Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly 1
