商品の詳細:
|
| ハイライト: | High Strength Steel Grating Drain Cover,Corrosion Resistant Trench Drain Cover,Easy Installation Drainage Ditch Cover |
||
|---|---|---|---|

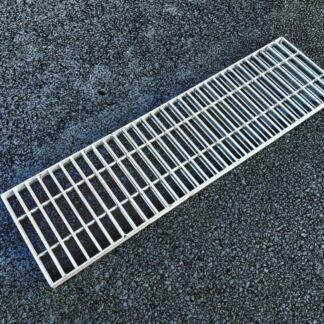

Steel grating trench covers are protective coverings made of high-strength steel bars formed into a grid-like structure. These durable covers are designed to protect trenches, drainage channels, and other ground openings while maintaining proper ventilation and drainage.
| Bearing Bar Pitch | Cross Bar Pitch | Load Steel Size (Width × Thickness) |
|---|---|---|
| 30 | 100 | G203/30/100, G253/30/100, G323/30/100, G403/30/100, G205/30/100, G255/30/100 |
| 50 | G203/30/50, G253/30/50, G323/30/50, G403/30/50, G205/30/50, G255/30/50 | |
| 40 | 100 | G203/40/100, G253/40/100, G323/40/100, G403/40/100, G205/40/100, G255/40/100 |
| 50 | G203/40/50, G253/40/50, G323/40/50, G403/40/50, G205/40/50, G255/40/50 | |
| 60 | 50 | G253/60/50, G403/60/50, G205/60/50, G255/60/50 |
| Bearing Bar Pitch | Cross Bar Pitch | Load Steel Size (Width × Thickness) |
|---|---|---|
| 30 | 100 | G325/30/100, G405/30/100, G455/30/100, G505/30/100, G555/30/100, G605/30/100 |
| 50 | G325/30/50, G405/30/50, G455/30/50, G505/30/50, G555/30/50, G605/30/50 | |
| 40 | 100 | G325/40/100, G405/40/100, G455/40/100, G505/40/100, G555/40/100, G605/40/100 |
| 50 | G325/40/50, G405/40/50, G455/40/50, G505/40/50, G555/40/50, G605/40/50 | |
| 60 | 50 | G325/60/50, G405/60/50, G455/60/50, G505/60/50, G555/60/50, G605/60/50 |
