| ハイライト: | 2" Cross Bar Spacing Stainless Steel Bar Grating,4" Cross Bar Spacing Stainless Steel Grating,15/16" Bearing Bar Spacing Steel Bar Grating |
||
|---|---|---|---|

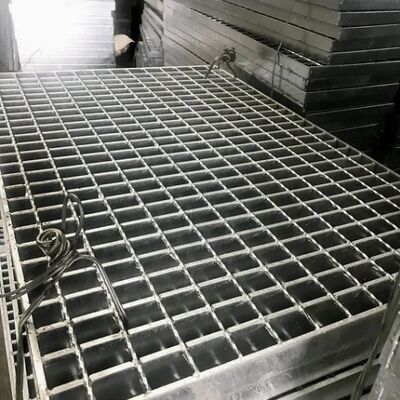

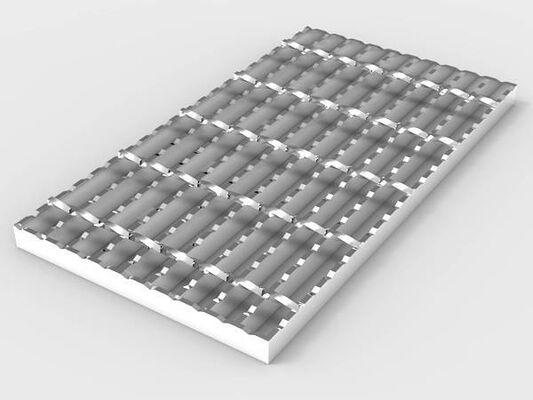

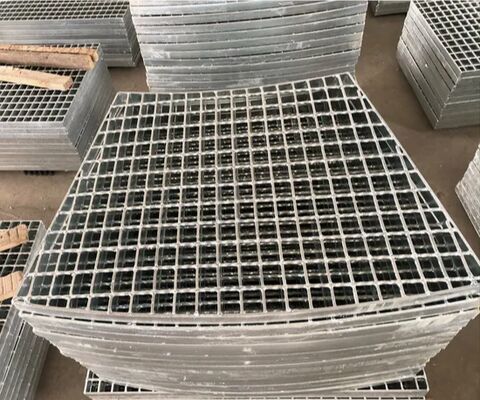

Our stainless steel bar gratings offer exceptional strength, durability, and corrosion resistance for load-bearing applications in demanding environments. Designed for long-term service, these gratings provide an economical solution for industrial and architectural applications.
Commonly used as walkways, catwalks, platforms, stairways, entranceways, and trench gratings in:
| Specification | Description |
|---|---|
| Material | 304, 304L, 316, 316L stainless steel |
| Manufacturing Process | Welded, swage-locked, or press-locked |
| Surface Type | Standard plain surface, serrated surface |
| Cross Bar Spacing | 2" or 4", center to center |
| Bearing Bar Spacing | 15/16" or 1-3/16", center to center |
| Bearing Bar Height | 20mm to 60mm |
| Bearing Bar Thickness | 2mm to 5mm |
| Cross Bar Size | 4mm to 10mm diameter |
| Slip Resistance | Serrated or plain surface, depending on application |
| Installation Method | Welding, clips, or bolts and nuts |
| Compliance | Meets ASTM, ISO, and ANSI/NAAMM standards |
