Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating

顧客の検討
私の火格子は今日来、完全に合いました。ありがとう。私にどこでも私があなたの会社についての正帰還を残してもいいことがあるかどうか知らせて下さい!

—— アンドリューMullen

オンラインです

Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating

Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating
Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating

大画像 :  Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating

商品の詳細:
起源の場所: 中国
ブランド名: GNEE
証明: SGS
お支払配送条件:
価格: negotiable
パッケージの詳細: 海に値する梱包、すなわち、鋼鉄のストリップ付きの木製またはスチールトレイなど
受渡し時間: 5-9営業日
支払条件: 交渉可能

Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating

説明
ハイライト:

T1 steel galvanized metal grate

,

serrated steel grating steps

,

30x100cm galvanized grate grating

Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating

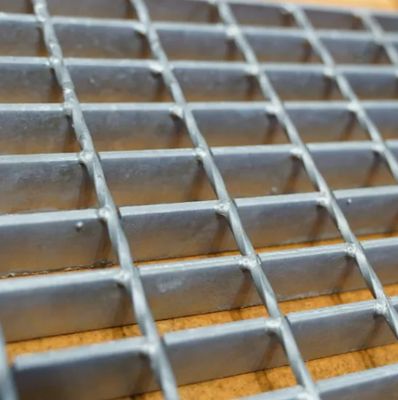

Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be categorized into four types: welded bar grating, press-locked grating, swage-locked grating, and riveted grating. Based on surface design, it is available in both smooth and serrated options. With a wide range of styles and sizes, steel grating serves versatile applications in everyday life, including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment, security screens, and heavy-duty constructions.
Product Types

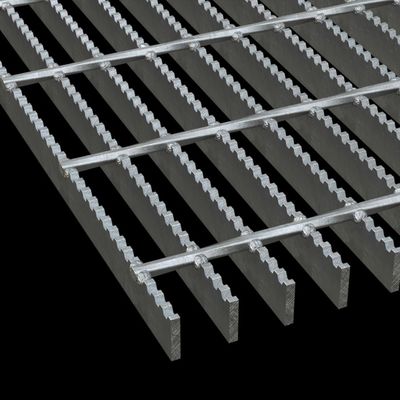

  • Welded bar grating - Also called metal open bar grating, available in smooth and serrated types. Smooth is more popular, while serrated offers better skid resistance.
  • Press Lock Grating - Made from low carbon steel, stainless steel, or aluminum, created by bonding slotted bars under hydraulic pressure. Strong and durable for industrial applications.
  • Swage Locked Grating - Mainly made of aluminum or stainless steel bars, formed by inserting cross bars into pre-punched bearing bars and locking them under hydraulic pressure.
Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating 0
Product Specifications
Material Carbon Steel, Stainless Steel, Aluminum
Surface treatment Hot dipped galvanized, Spray painting, Polished and powder coated
Bearing bar type Plain(Flat) bar, Serrated bar, I-bar, etc.
Common Specifications
Bearing bar pitch (mm) Cross bar pitch (mm) Bearing bar size (WSG_Height×Thickness_Bearing bar pitch_Cross bar pitch)
30 100 WSG_203/253/323/403/205/325/405/455/505/555_30_100
30 50 WSG_203/253/323/403/205/325/405/455/505/555_30_50
40 100 WSG_203/253/323/403/205/325/405/455/505/555_40_100
40 50 WSG_203/253/323/403/205/325/405/455/505/555_40_50
60 50 WSG_203/253/323/403/205/325/405/455/505/555_60_50
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.
Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating 1 Wholesale 25X3mm High Quality 30X100cm T1 Steel Galvanized Metal Grate Steps Grating 2
