商品の詳細:
|
| ハイライト: | galvanized welded steel grating,serrated steel grating walkway,steel structure metal grating |
||
|---|---|---|---|

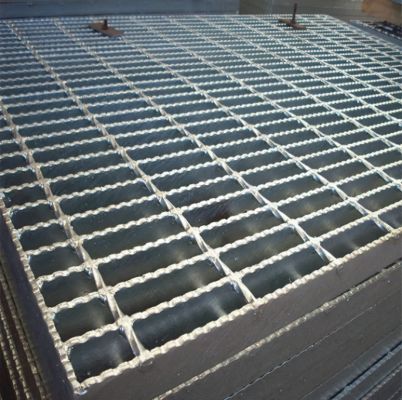

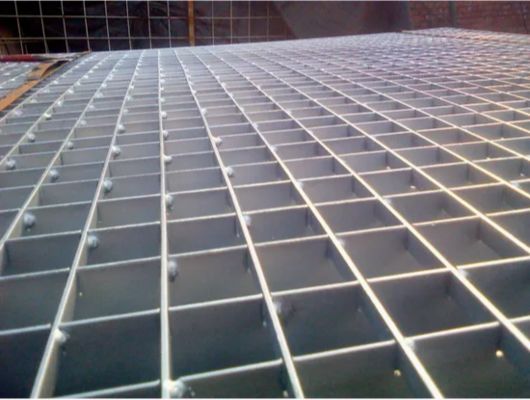

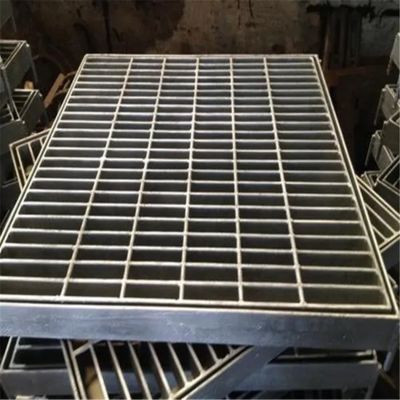

| Product Name | Steel Bar Grating |
| Material | Mild Steel (Low Carbon Steel), S235, S275JR, A36, or Stainless Steel SS304, SS316 etc, Aluminum 3003, 5052 |
| Surface treatment | Hot dipped galvanized, polished or untreated |
| Bearing bar (width x thickness) | 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, 75x10mm |
| Bearing bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 11/4"x3/16", 11/2"x3/16", 1"x 1/4", 11/4"×1/4", 11/2"x 1/4" etc. |
| Cross bar pitch | 38, 50, 76, 100, 101.6mm or customized |
| Pitch of Bearing bar | Cross-bar Pitch | 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 |
|---|---|---|---|---|---|---|---|
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 30 | 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 40 | 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Pitch of Bearing bar | Cross-bar Pitch | 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
|---|---|---|---|---|---|---|---|
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 30 | 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 40 | 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
