商品の詳細:
|
| ハイライト: | hot-dip galvanized steel grating,stainless steel stair treads,outdoor platform walkway grating |
||
|---|---|---|---|

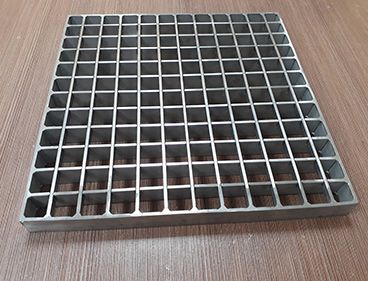

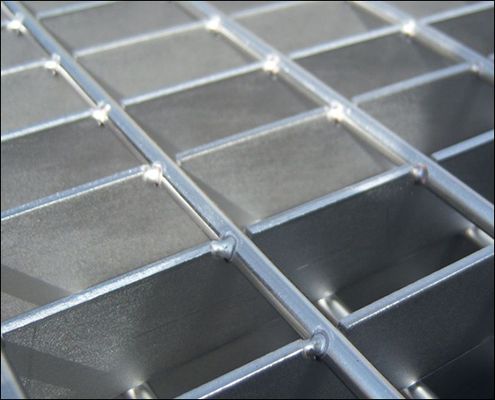

Serrated steel grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. In addition to its high strength and light weight, this type of grating also has non-slip characteristics, no sharp edges and serrations are rolled on, to meet strict health and safety requirements. Hot rolled serrations help stop lacerations if someone falls on the grating.
Optional serrated bearing bars enhance skid resistance. Consider this surface for applications subject to the accumulation of liquids or lubricants or inclined grating installations. The excellent self-cleaning characteristics of plain surface grating make it suitable for the majority of applications. In the presence of fluids or materials that could cause the top surface of the grating to become wet or slippery, specification of the optional serrated surface should be considered. When serrated grating is specified, the bearing bar depth must be 1/4" greater, to provide the equivalent strength of non-serrated gratings.
| No | Item | Description |
|---|---|---|
| 1 | Bearing bar | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50...75x8mm, etc. |
| 2 | Bearing bar pitch | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. |
| 3 | Cross bar | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| 4 | Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers' requirements. |
| 5 | Surface treatment | Untreated, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as per customers' requirement. |
| 6 | Flat bar type | Plain, Serrated (tooth-like), I bar (I section) |
| 7 | Material standard | Low carbon steel (CN: Q235, US: A36, UK: 43A) |
| 8 | Galvanization standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
| 9 | Steel grating standards |
|
