商品の詳細:
|

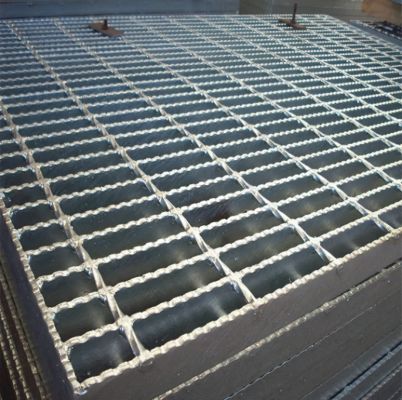

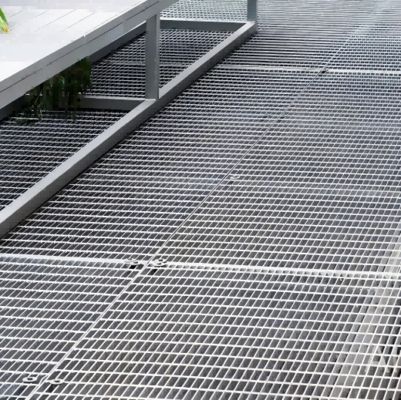

| ハイライト: | hot galvanized steel grating,outdoor driveway drain grating,stair tread power plant grating |
||
|---|---|---|---|
| Load Bearing Flat Bar size | Thickness≥3mm, depth ≥19mm |
|---|---|
| Available Sizes | 19X3,19X5,20X3, 20X5, 25X3, 25X4, 25X4.5, 25X4.7, 25X5.....40X6, 40X8, 40X10,....90X6.... |
| Pitch of Load bearing flat bars(mm) | 12.5,15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80... |
| Pitch of cross bars(mm) | 38.1, 50, 50.8, 70, 75, 80, 99,100, 101.6, 102... |
| Country | Steel grating standard | Steel material standard | Hot galvanizing standard |
|---|---|---|---|
| China | YB/T4001-1998 | GB 700-88 | GB/T13912-2002 |
| USA | ANSI/NAAMM(MBG531-88) | ASTM (A36) | ASTM(A123) |
| England | BS4592-1987 | BS4360 (43A) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
| No. | Item | Description |
|---|---|---|
| 1 | Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'',etc |
| 2 | Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| 4 | Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
