| ハイライト: | custom perforated aluminum mesh,aluminum mesh plate with holes,perforated metal sheet customizable |
||
|---|---|---|---|
Applications: The opening size, density and forms of distribution can bring different functions in separation, sifting, filtration, drying, cooling, cleaning, etc.
Stainless Steel, Plain Steel, Galvanized Steel, Aluminum, Brass (Copper), Phosphor or Bronze
| HOLE | CENTERS | GAUGE / PLATE THICK. | OPEN AREA |
|---|---|---|---|
| .020" RD | .045" Stag | 26 | 18% |
| 1/32" RD | 1/16" Stag | 22 | 23% |
| 3/64" RD | 5/64" Stag | 24 | 33% |
| 3/64" RD | 3/32" Stag | 22 thru 18 | 23% |
| 1/16" RD | 3/32"Stag | 22 thru 16 | 40% |
| 1/16" RD | 7/64" Stag | 20 thru 16 | 30% |
| 1/16" RD | 1/8" Stag | 26 thru 16 | 23% |
| 5/64" RD | 1/8" Stag | 22 thru 14 | 35% |
| 3/32" RD | 5/32" Stag | 24 thru 14 | 33% |
| 3/32" RD | 3/16" Stag | 24 | 23% |
| .117 RD | 5/32" Stag | 18 | 51% |
| 1/8" RD | 3/16" Stag | 24 thru 11 | 40% |
| 1/8" RD | 7/32" Stag | 14 thru 12 | 30% |
| 1/8" RD | 1/4" Stag | 14, 13 | 23% |
| 9/64" RD | 3/16" Stag | 18 | 51% |
| 5/32" RD | 3/16" Stag | 22 thru 16 | 63% |
| 5/32" RD | 1/4" Stag | 20 thru 10 | 35% |
| 3/16" RD | 7/32" Stag | 22 thru 16 | 67% |
| 3/16" RD | 1/4" Stag | 24 thru 12 | 51% |
| 3/16" RD | 5/16" Stag | 10, 3/16" | 33% |
| 3/16" RD | 3/8" Stag | 14 thru 10 | 23% |
| 1/4" RD | 5/16" Stag | 20 thru 16 | 58% |
| 1/4" RD | 3/8" Stag | 26 thru 1/4" | 40% |
| 17/64" RD | 5/16" Stag | 20 | 66% |
| 5/16"RD | 7/16" Stag | 20 thru 1/4" | 46% |
| 3/8" RD | 9/16" Stag | 20 thru 1/4" | 40% |
| 1/2" RD | 11/16" Stag | 20 thru 1/4" | 48% |
| 1/2" RD | 3/4" Stag | 16 | 40% |
| 5/8" RD | 7/8" Stag | 10 thru 1/4" | 46% |
| 3/4" RD | 1" Stag | 16 thru 1/4" | 51% |
| 1" RD | 1-3/8" Stag | 10 thru 1/4" | 48% |
| 1-1/4" RD | 1-5/8" Stag | 1/4" | 54% |
| 1-1/2" RD | 2" Stag | 1/4" | 51% |
| 2" RD | 2-1/2" Stag | 1/4" | 58% |
| 2-1/2" RD | 3" Stag | 3/16" | 63% |
| 3" RD | 3-1/2" Stag | 3/16" | 67% |
| 4" RD | 4-1/2" Stag | 10 | 72% |

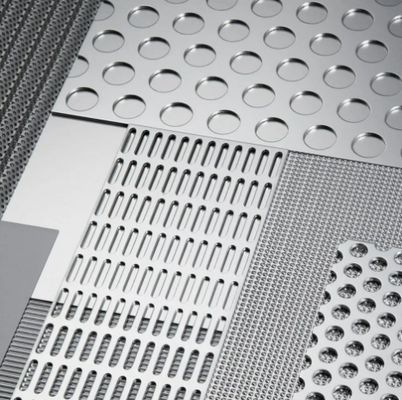

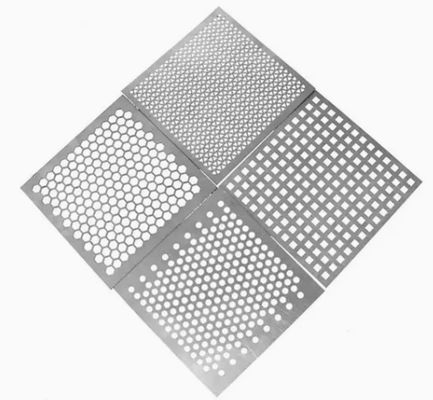

GNEE STEEL offers perforated metal in different patterns, materials and thickness.
