Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers

顧客の検討
私の火格子は今日来、完全に合いました。ありがとう。私にどこでも私があなたの会社についての正帰還を残してもいいことがあるかどうか知らせて下さい!

—— アンドリューMullen

オンラインです

Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers

Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers
Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers

大画像 :  Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers

商品の詳細:
起源の場所: 中国
ブランド名: GNEE
証明: SGS
お支払配送条件:
最小注文数量: 10平方メートル
価格: negotiable
パッケージの詳細: 海に値する梱包、すなわち、鋼鉄のストリップ付きの木製またはスチールトレイなど
受渡し時間: 5-9営業日
支払条件: 交渉可能
供給の能力: 100トン/週

Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers

説明
ハイライト:

hot dipped galvanized steel grating

,

press welded steel grating 2mm

,

municipal construction steel grating

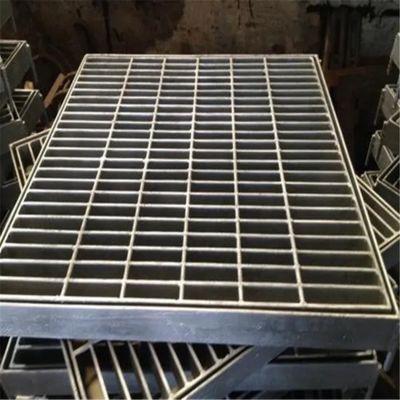

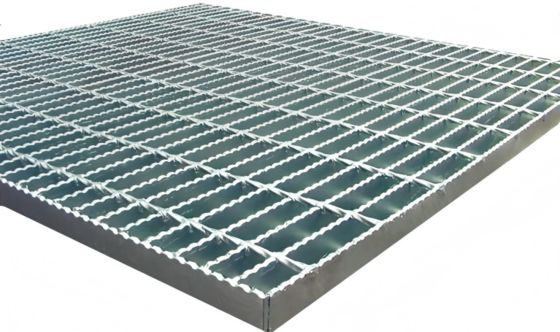

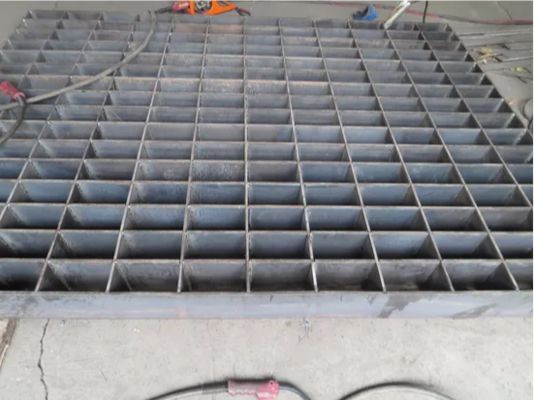

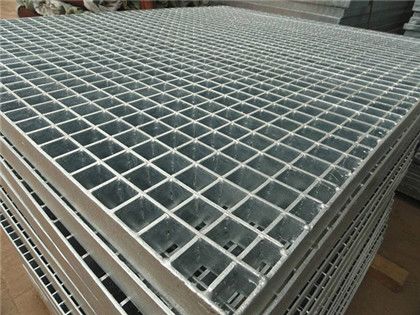

Metal steel grating is a versatile, durable, and high-strength material widely used in various industrial and commercial applications. Made primarily from steel, it consists of a series of parallel, load-bearing bars intersected by perpendicular crossbars, forming a grid-like pattern. This structure provides excellent strength, durability, and resistance to heavy loads, making it an ideal choice for environments requiring robust and long-lasting solutions.

Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers 0



Item
Description





Bearing Bar
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,

50x5, 65x5, 75x6, 75x10,100x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc.

US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16',

1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8',

1 1/2'x1/8' etc.


Bearing Bar Pitch
12.5, 15, 20, 25, 30, 32, 35, 38, 40, 60, 80mm etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

Noted:19-W-4 is most popular(19/16 inch x 4 inch opening=30x100mm opening)
Twisted Cross Bar Pitch
50, 60, 76, 100, 120 mm etc.

US standard: 2' & 4' etc.
Surface Treatment
Black, self colour, hot dip galvanized, painted, spray coating

Grating Style
Plain / Smooth, Serrated /teeth, I bar, serrated I bar



Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers 1




Key Features of Metal Steel Grating:

  1. High Load-Bearing Capacity:
    Designed to withstand substantial weight, metal steel grating is suitable for industrial platforms, walkways, and heavy-duty floors.

  2. Durability and Corrosion Resistance:
    Typically galvanized or coated for protection, steel grating resists rust and corrosion, ensuring a longer service life even in harsh environments.

  3. Slip Resistance:
    The grid design provides a non-slip surface, enhancing safety in areas prone to wet or oily conditions.

  4. Ventilation and Drainage:
    The open-grid pattern allows for excellent air circulation, drainage, and light penetration, making it ideal for applications like trenches and ventilation covers.

  5. Customizable Designs:
    Available in various sizes, thicknesses, and bar spacings, steel grating can be tailored to meet specific project requirements.

Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers 2



Common Applications:

  • Industrial Floors: Factories, warehouses, and power plants.
  • Walkways and Platforms: Oil rigs, construction sites, and maintenance areas.
  • Stair Treads: Non-slip and sturdy steps for industrial and commercial use.
  • Drainage Covers: Suitable for sewers, trenches, and stormwater management.
  • Fencing and Barriers: For secure perimeters or enclosures.

Metal steel grating is valued for its strength, adaptability, and practicality, offering a reliable solution across diverse industries. Its ease of installation and maintenance further contribute to its widespread appeal.

Anti-Dumping Free Hot Sale Municipal Construction Hot Dipped Galvanized Press Welded Steel Grating 2mm China Suppliers 3
